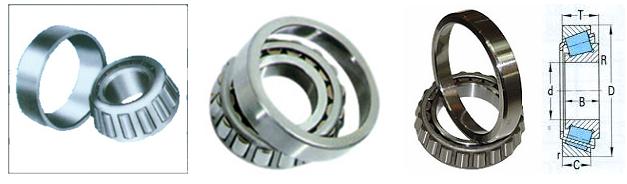

单列英制圆锥滚子轴承：内径266.7-45.618

基 本 尺 寸 mm

现 代 号

作 用 点
Function point

基本额定负荷 kN

极 限 转 速 rpm
Speed ratings

重 量
Weight

Principal dimension

Basic load ratings

d

D

T

Designations

a

动dyc

静stc

脂润滑 Grease

油润滑 Oil

Kg

mm

英寸Inch

mm

英寸Inch

mm

英寸Inch

Cr

Cor

266.7

10.5

393.7

15.5

130.175

5.125

KEE275105/K275155

75

700

1400

750

1000

27.8

273.05

10.75

393.7

15.5

130.175

5.125

KEE275108/K275155

75

700

1400

750

1000

26.3

288.925

11.375

406.4

16

77.788

3.0625

M255449/M255410

72

1140

1900

670

900

30.5

304.8

12

393.7

15.5

50.8

2

KL357049/KL357010

64

530

1210

670

900

14.6

304.8

12

406.4

16

63.5

2.5

LM757049/LM757010

79

2000

2800

670

900

21.2

607.72

23.926

787.4

31

93.662

3.6875

EE649239/649310

124

2000

2800

340

450

108

760*

29.9213

889

35

88.9

3.5

L183448/L183410

127

2000

3200

260

360

93.5

762

30

889

35

88.9

3.5

L183449/L183410

127

2000

3200

260

360

91.9

17.462

0.6875

39.878

1.57

13.843

0.545

LM11749/LM11710

9

25.6

28

9000

13000

0.0758

19.05

0.75

45.237

1.781

15.494

0.61

LM11949/LM11910

10

28

32

8500

1200

0.123

19.05

0.75

49.225

1.938

21.209

0.835

K09067/K09196

15

34

37

8500

1200

0.195

19.05

0.75

49.225

1.938

23.02

0.9063

K09074/K09194

16

34

37

8500

1200

0.201

21.43

0.8437

50.005

1.9687

17.526

0.69

M12649/M12610

11

43

55

8000

11000

0.169

21.43

0.8437

50.005

1.9687

17.526

0.69

K2M12649/K2M12610

11

56

72

8000

11000

0.169

22

0.8653

45.237

1.781

15.494

0.61

LM12749/LM12710

13

32.5

40

8000

11000

0.116

25.4

1

50.292

1.98

14.224

0.56

L44643/L44610

11

26.8

34

7500

10000

0.128

25.4

1

57.15

2.25

19.431

0.765

KM84548/KM84510

16

38

49

7500

10000

0.237

26*

57.15

2.25

17.462

0.6875

K15579X/K15520

19

34.5

43.5

7500

10000

0.207

26.988

1.0625

50.292

1.98

14.224

0.56

L44649/L44610

11

26.8

34

7500

10000

0.126

26.988

1.0625

63.5

2.5

20.638

0.8125

K15106/K15250X

15

42

53

7500

10000

0.316

28.575

1.125

73.025

2.875

22.225

0.875

K02872/K02820

19

50

65.5

7000

9000

0.825

29

1.1417

50.292

1.98

14.224

0.56

L45449/L45410

11

26.8

34

7000

9000

0.118

30

1.811

72.085

2.838

22.385

0.8813

K14118/K14283

17

42

55.5

7000

9000

0.202

31.75

1.25

59.131

2.328

15.875

0.625

LM67048/LM67010

13

40

50

6300

8500

0.175

31.75

1.25

62

2.4409

18.161

0.715

K15123/K15245

13

51.5

62

6300

8500

0.242

33.338

1.3125

68.262

2.6875

22.225

0.875

KM88048/KM88010

19

50.9

70.4

6300

8500

0.382

34.925

1.375

65.088

2.5625

18.034

0.71

KLM48548/KLM48510

14

44.5

60

5600

7500

0.26

34.925

1.375

65.088

2.5625

21.082

0.83

KLM48548A/KLM48511A

14

44.5

60

5600

7500

0.291

34.925

1.375

69.012

2.717

19.845

0.7813

K14138A/K14274

14

42

55.5

5600

7500

0.32

34.925

1.375

73.025

2.875

23.812

0.9375

25877/25821

14

65

85

5600

7500

0.475

35*

59.131

2.328

15.875

0.625

L68149/L68110

13

31

36

5600

7500

0.166

38.1

1.5

65.088

2.5625

18.034

0.71

KLM29749/KLM29710

12

40

57

5000

7000

0.237

38.1

1.5

72.238

2.844

20.638

0.8125

K16150/K16284

17

45

61

5000

7000

0.345

38.1

1.5

76.2

3

23.812

0.9375

K2788/K2720

17

82

110

5000

7000

0.507

38.1

1.5

79.375

3.125

29.37

1.1563

K3490/K3420

20

79.1

104

5000

7000

0.653

38.1

1.5

82.55

3.25

29.37

1.1563

HM801346X/HM801310

25

89

127

5000

7000

0.77

38.1

1.5

88.5

3.4843

26.988

1.0625

418/414

18

90.5

113

5000

7000

0.843

39.688

1.5625

73.025

2.875

23.812

0.9375

K2789/K2735X

17

82

110

4500

6000

0.413

41*

68*

2.6772

17.5

0.689

KLM300849/KLM300811

14

46.5

60

4500

6000

0.241

41.275

1.625

73.431

2.891

19.558

0.77

LM501349/LM501310

15

61

73.5

4500

6000

0.353

41.275

1.625

73.431

2.891

21.43

0.8437

KLM501349/KLM501314

17

61

73.5

4500

6000

0.36

41.275

1.625

80.167

3.1562

29.37

1.1563

K3384/K3320

17

88

114

4500

6000

0.63

41.275

1.625

82.55

3.25

26.543

1.045

KM802048/KM802011

23

76.5

105

4500

6000

0.623

41.275

1.625

87.312

3.4375

30.162

1.1875

K3585/K3525

24

117

175

4500

6000

0.861

42.875

1.688

82.931

3.265

26.988

1.0625

K25577/K25523

19

71

101

4500

6000

0.646

44.45

1.75

82.931

3.265

23.812

0.9375

K25580/K25520

18

70

100

4500

6000

0.573

44.45

1.75

90.119

3.548

23

0.9055

K355X/K352

18

65

85

4500

6000

0.668

45.242

1.7812

73.431

2.891

19.558

0.77

LM102949/LM102910

14

47

70

4500

6000

0.318

45.618

1.796

82.931

3.265

23.812

0.9375

25590/25520

18

70

100

4500

6000

0.556

45.618

1.796

82.931

3.265

26.988

1.0625

K25590/K25523

18

70

100

4500

6000

0.589
