SJM双型膜片联轴器SJM00、SJM01、SJM02、SJM03、SJM04、SJM05、SJM06、SJM07、SJM08、SJM09、SJM10、SJM11、SJM12、SJM13、SJM14、SJM15、SJM16、SJM17、SJM18、SJM19、SJM20、SJM21、SJM22、SJM23
发布时间：2026-03-24
 |

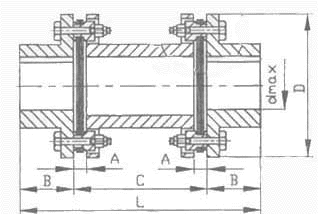

| SJM 双型膜片联轴器的主要尺寸和参数 |
max
|
规格 |
公称扭矩N.M |
许用转速rpm |
重量kg |
转动惯量kg.cm^2 |
主 要 尺 寸 mm |
许用补偿量 |
|
D |
D |
A |
B |
L |
C |
轴向 mm |
角向 |
径向 mm |
|
00 |
9.8 |
20000 |
0.23 |
3.0 |
20 |
57 |
4.9 |
20 |
100 |
60 |
±1.6 |
2° |
0.5 |
|
01 |
33 |
20000 |
1.2 |
8 |
22 |
68 |
6.1 |
26 |
141 |
89 |
±1.6 |
2° |
0.5 |
|
02 |
90 |
20000 |
1.9 |
24 |
32 |
81 |
6.6 |
26 |
141 |
89 |
±1.6 |
2° |
0.5 |
|
03 |
173 |
18000 |
2.9 |
48 |
35 |
93 |
8.4 |
29 |
160 |
102 |
±2.4 |
2° |
0.6 |
|
04 |
245 |
15000 |
4.7 |
80 |
42 |
104 |
11.2 |
34 |
195 |
127 |
±2.8 |
2° |
0.7 |
|
05 |
420 |
13000 |
7.1 |
224 |
50 |
126 |
11.7 |
42 |
211 |
127 |
±3.2 |
1°30′ |
0.7 |
|
06 |
772 |
12000 |
10.8 |
440 |
60 |
143 |
11.7 |
48 |
223 |
127 |
±3.6 |
1°30′ |
0.8 |
|
07 |
1270 |
10000 |
16.3 |
1080 |
75 |
168 |
16.8 |
58 |
243 |
127 |
±4.0 |
1°30′ |
0.8 |
|
08 |
2080 |
10000 |
24.7 |
2080 |
82 |
194 |
17.0 |
64 |
268 |
140 |
±4.4 |
1°30′ |
0.9 |
|
09 |
3328 |
9000 |
32.5 |
3520 |
95 |
214 |
21.6 |
77 |
306 |
152 |
±4.8 |
1°30′ |
0.9 |
|
10 |
4900 |
8000 |
50.0 |
7200 |
108 |
246 |
23.9 |
89 |
356 |
178 |
±5.2 |
1°30′ |
1.0 |
|
11 |
6368 |
8000 |
75.0 |
12800 |
118 |
276 |
27.2 |
102 |
382 |
178 |
±5.6 |
1°30′ |
1.2 |
|
12 |
8900 |
6300 |
72.2 |
18000 |
110 |
276 |
17.5 |
128 |
409 |
153 |
±3.6 |
1° |
1.2 |
|
13 |
15280 |
5000 |
12.0 |
37000 |
135 |
308 |
19.0 |
160 |
492 |
172 |
±4.0 |
1° |
1.2 |
|
14 |
25410 |
4700 |
175 |
68000 |
155 |
346 |
21.5 |
182 |
554 |
190 |
±4.0 |
1° |
1.2 |
|
15 |
37130 |
4300 |
234 |
108000 |
165 |
375 |
24.0 |
198 |
620 |
224 |
±4.0 |
1° |
1.3 |
|
16 |
47120 |
3900 |
306 |
167000 |
180 |
410 |
29.5 |
214 |
682 |
254 |
±4.4 |
1° |
1.3 |
|
17 |
57000 |
3500 |
369 |
250000 |
190 |
445 |
29.5 |
225 |
720 |
270 |
±4.4 |
1° |
1.4 |
|
18 |
63186 |
3500 |
448 |
311000 |
205 |
470 |
31.0 |
248 |
770 |
274 |
±4.8 |
1° |
1.5 |
|
19 |
82590 |
3200 |
596 |
480000 |
230 |
512 |
32.0 |
278 |
843 |
287 |
±4.8 |
1° |
1.6 |
|
20 |
102100 |
2800 |
763 |
747000 |
255 |
556 |
32.5 |
305 |
902 |
292 |
±5.2 |
1° |
1.8 |
|
21 |
126070 |
2450 |
919 |
1016000 |
265 |
588 |
34.0 |
318 |
948 |
312 |
±5.4 |
1° |
1.8 |
|
22 |
146350 |
2150 |
1068 |
1386000 |
275 |
630 |
34.5 |
332 |
1008 |
344 |
±5.6 |
1° |
2.0 |
|
23 |
173830 |
2000 |
1235 |
1784000 |
290 |
655 |
35.5 |
348 |
1052 |
356 |
±6.0 |
1° |
2.0 | |
