外球面轴承带座NAFLU201、NAFLU202、NAFLU203、NAFLU204、NAFLU205、NAFLU206、NAFLU207、NAFLU208、NAFLU209、NAFLU210、NAFLU211、NAFLU212、NAFLU213、NAFLU214、NAFLU215

发布时间：2025-05-05

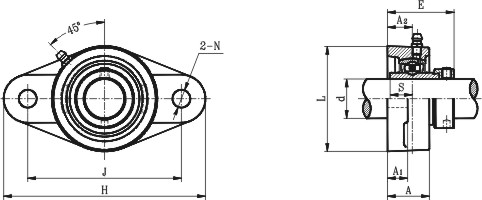

带座轴 承代号 轴径 外形尺寸(mm) 螺栓规格 轴承代码 座代号 重量(kg) d H J L A2 A1 A E N S (in.) (mm)  NAFLU201S 12 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA201S FLU203 0.64  NAFLU201-8S 1/2 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA201-8S FLU203 0.64  NAFLU203S 17 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA203S FLU203 0.64  NAFLU203-11S 11/16 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA203-11S FLU203 0.64  NAFLU204-12 3/4 112.5 90 61 19 15 29.5 45.5 11.5 17 M10 NA204-12 FLU204 0.73  NAFLU204 20 112.5 90 61 19 15 29.5 45.5 11.5 17 M10 NA204 FLU204 0.73  NAFLU205-14 7/8 123 99 70 19 15 30 45.9 11.5 17.4 M10 NA205-14 FLU205 0.8  NAFLU205-15 15/16 123 99 70 19 15 30 45.9 11.5 17.4 M10 NA205-15 FLU205 0.8  NAFLU205 25 123 99 70 19 15 30 45.9 11.5 17.4 M10 NA205 FLU205 0.8  NAFLU205-16 1 123 99 70 19 15 30 45.9 11.5 17.4 M10 NA205-16 FLU205 0.8  NAFLU206-18 1-1/8 142 116.5 82 20 16 32.5 50.1 11.5 18.2 M10 NA206-18 FLU206 1.2  NAFLU206 30 142 116.5 82 20 16 32.5 50.1 11.5 18.2 M10 NA206 FLU206 1.2  NAFLU206-19 1-3/16 142 116.5 82 20 16 32.5 50.1 11.5 18.2 M10 NA206-19 FLU206 1.2  NAFLU206-20 1-1/4 142 116.5 82 20 16 32.5 50.1 11.5 18.2 M10 NA206-20 FLU206 1.2  NAFLU207-20 1-1/4 158 130 94 21 17 36 53.3 14 18.8 M12 NA207-20 FLU207 1.6  NAFLU207-21 1-5/16 158 130 94 21 17 36 53.3 14 18.8 M12 NA207-21 FLU207 1.6  NAFLU207-22 1-3/8 158 130 94 21 17 36 53.3 14 18.8 M12 NA207-22 FLU207 1.6  NAFLU207 35 158 130 94 21 17 36 53.3 14 18.8 M12 NA207 FLU207 1.6  NAFLU207-23 1-7/16 158 130 94 21 17 36 53.3 14 18.8 M12 NA207-23 FLU207 1.6  NAFLU208-24 1-1/2 172 143.5 103 24 17 39 58.9 14 21.4 M12 NA208-24 FLU208 1.9  NAFLU208-25 1-9/16 172 143.5 103 24 17 39 58.9 14 21.4 M12 NA208-25 FLU208 1.9  NAFLU208 40 172 143.5 103 24 17 39 58.9 14 21.4 M12 NA208 FLU208 1.9  NAFLU209-26 1-5/8 180 148.5 108 24 18 40 58.9 16 21.4 M14 NA209-26 FLU209 2.3  NAFLU209-27 1-11/16 180 148.5 108 24 18 40 58.9 16 21.4 M14 NA209-27 FLU209 2.3  NAFLU209-28 1-3/4 180 148.5 108 24 18 40 58.9 16 21.4 M14 NA209-28 FLU209 2.3  NAFLU209 45 180 148.5 108 24 18 40 58.9 16 21.4 M14 NA209 FLU209 2.3  NAFLU210-30 1-7/8 190 157 114 28 20 45 66.1 18 24.6 M16 NA210-30 FLU210 2.6  NAFLU210-31 1-15/16 190 157 114 28 20 45 66.1 18 24.6 M16 NA210-31 FLU210 2.6  NAFLU210 50 190 157 114 28 20 45 66.1 18 24.6 M16 NA210 FLU210 2.6  NAFLU210-32 2 190 157 114 28 20 45 66.1 18 24.6 M16 NA210-32 FLU210 2.6  NAFLU211-32 2 217 184 128 31 21 48 74.6 18 27.7 M16 NA211-32 FLU211 3.8  NAFLU211-34 2-1/8 217 184 128 31 21 48 74.6 18 27.7 M16 NA211-34 FLU211 3.8  NAFLU211 55 217 184 128 31 21 48 74.6 18 27.7 M16 NA211 FLU211 3.8  NAFLU211-35 2-3/16 217 184 128 31 21 48 74.6 18 27.7 M16 NA211-35 FLU211 3.8  NAFLU212-36 2-1/4 237 202 138 34 21 53 80.8 18 30.9 M16 NA212-36 FLU212 4.8  NAFLU212 60 237 202 138 34 21 53 80.8 18 30.9 M16 NA212 FLU212 4.8  NAFLU212-38 2-3/8 237 202 138 34 21 53 80.8 18 30.9 M16 NA212-38 FLU212 4.8  NAFLU212-39 2-7/16 237 202 138 34 21 53 80.8 18 30.9 M16 NA212-39 FLU212 4.8  NAFLU213-40 2-1/2 256 210 152 38 22 56 89.6 21 34.1 M18 NA213-40 FLU213 6.0  NAFLU213 65 256 210 152 38 22 56 89.6 21 34.1 M18 NA213 FLU213 6.0  NAFLU214-44 2-3/4 264 216 157 38 23 58 89.6 21 34.1 M18 NA214-44 FLU214 6.3  NAFLU214 70 264 216 157 38 23 58 89.6 21 34.1 M18 NA214 FLU214 6.3  NAFLU215-47 1-15/16 275 225 164 41 24 62 95.8 21 37.3 M18 NA215-47 FLU215 7.2  NAFLU215 75 275 225 164 41 24 62 95.8 21 37.3 M18 NA215 FLU215 7.2  NAFLU215-48 3 275 225 164 41 24 62 95.8 21 37.3 M18 NA215-48 FLU215 7.2  NAFL202S 15 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA202S FLU203 0.64  NAFL202-10S 5/8 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 NA202-10S FLU203 0.64  NAFLU201 12 112.5 90 61 19 15 29.5 45.5 11.5 17 M10 NA201 FLU204 0.73  NAFLU201-8 1/2 112.5 90 61 19 15 29.5 45.5 11.5 17 M10 NA201-8 FLU204 0.73  NAFLU202 15 112.5 90 61 19 15 29.5 45.5 11.5 17 M10 NA202 FLU204 0.73
