滚珠丝杠轴承760201TN1、760202TN1、760203TN1、760204TN1、760205TN1、760206TN1、760207TN1、760208TN1、760209TN1、760210TN1、760211TN1、760212TN1

发布时间：2025-06-19

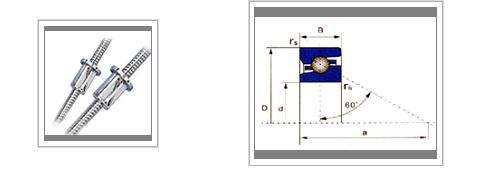

轴承代号	外形尺寸			额定载荷		极限转速		重量
	d	D	B	Cr	Cor	脂油		≈
	mm			KN		r/min		kg
760201TN1	12	32	10	11.6	12.5	17000	24000	0.04
760202TN1	15	35	11	12.5	15	15000	20000	0.05
760203TN1	17	40	12	16.6	20	13000	18000	0.07
760204TN1	20	47	14	19.3	25	12000	17000	0.13
760205TN1	25	52	15	22	30.5	11000	16000	0.16
760206TN1	30	62	16	26	39	9000	13000	0.24
760207TN1	35	72	17	30	50	8000	11000	0.34
760208TN1	40	80	18	37.5	64	7000	9500	0.44
760209TN1	45	85	19	38	68	6700	9000	0.5
760210TN1	50	90	20	39	75	6300	8500	0.57
760211TN1	60	100	21	40.5	81.5	6000	8000	0.75
760212TN1	65	110	22	56	112	5000	6700	0.96
