凸台圆形座UCFCSX05、UCFCSX06、UCFCSX07、UCFCSX08、UCFCSX09、UCFCSX10、UCFCSX11、UCFCSX12、UCFCSX13、UCFCSX14、UCFCSX15、UCFCSX16、UCFCSX17、UCFCSX18、UCFCSX20

Bearing Unit NO.

Shaft Dia
d

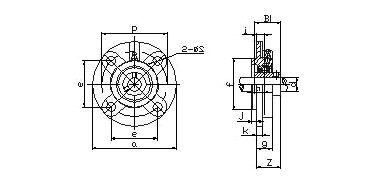

Dimensions(mm)

Bolt Used

Bearing No.

Housing
No.

Housing
Wt (kg)

(in)

(mm)

a

p

e

i

s

j

k

g

f

z

Bi

n

(in)

(mm)

UCFCSX05-16
UCFCSX05

1

25

111

92

65

10

9.5

6.4

9.5

24

76.2

32.2

38.1

15.9

5/16

M8

UCX05-16
UCX05

FCSX05

1.02

UCFCSX06-19
UCFCSX06-20
UCFCSX06

1-3/16
1-1/4

30

127

105

74.2

8

12

9.5

9.5

22

85.7

33.4

42.9

17.5

3/8

M10

UCX06-19
UCX06-20
UCX06

FCSX06

1.46

UCFCSX07-22
UCFCSX07-23
UCFCSX07

1-3/8
1-7/16

35

133

111

78.5

9

12

11.1

11

26

92

39.2

49.2

19

3/8

M10

UCX07-22
UCX07-23
UCX07

FCSX07

1.94

UCFCSX08-24
UCFCSX08

1-1/2

40

133

111

78.5

9

12

11.1

11

26

92

39.2

49.2

19

3/8

M10

UCX08-24
UCX08

FCSX08

2.4

UCFCSX09-26
UCFCSX09-27
UCFCSX09-28
UCFCSX09

1-5/8
1-11/16
1-3/4

45

156

130

92

8

14

11.9

11

25

108

40.6

51.6

19

7/16

M12

UCX09-26
UCX09-27
UCX09-28
UCX09

FCSX09

2.8

UCFCSX10-31
UCFCSX10-32
UCFCSX10

1-15/16
2

50

162

137

96.2

7

14

15.9

11

25

114

40.4

55.6

22.2

7/16

M12

UCX10-31
UCX10-32
UCX10

FCSX10

3.06

UCFCSX11-35
UCFCSX11-36
UCFCSX11

2-3/16
2-1/4

55

181

152

108

4

16

22.2

12.7

26

127

43.7

65.1

25.4

1/2

M14

UCX11-35
UCX11-36
UCX11

FCSX11

4.3

UCFCSX12-38
UCFCSX12-39
UCFCSX12

2-3/8
2-7/16

60

194

165

117

11

16

19.8

14.3

33

140

50.7

65.1

25.4

1/2

M14

UCX12-38
UCX12-39
UCX12

FCSX12

5.6

UCFCSX13-40
UCFCSX13

2-1/2

65

194

165

117

11

16

19.8

14.3

33

140

55.4

74.6

30.2

1/2

M14

UCX13-40
UCX13

FCSX13

5.8

UCFCSX14-44
UCFCSX14

2-3/4

70

222

191

134

14

19

19.8

14.3

36

162

58.5

77.8

33.3

5/8

M16

UCX14-44
UCX14

FCSX14

7.7

UCFCSX15-47
UCFCSX15-48
UCFCSX15

2-15/16
3

75

222

191

134

12

19

22

15.9

35

162

61.3

82.6

33.3

5/8

M16

UCX15-47
UCX15-48
UCX15

FCSX15

8.3

UCFCSX16-50
UCFCSX16

3-1/4

80

260

219

155

10

23

25.4

19

36

187

61.6

85.7

34.1

3/4

M20

UCX16-50
UCX16

FCSX16

10.6

UCFCSX17-55
UCFCSX17

3-7/16

85

260

219

155

10

23

25.4

19

36

187

66.3

96

39.7

3/4

M20

UCX17-55
UCX17

FCSX17

11.2

UCFCSX18

90

260

219

155

12

23

27.8

19

43

187

73.1

104

42.9

3/4

M20

UCX18

FCSX18

11.9

UCFCSX20

100

276

238

168

22

23

27.8

22.2

66

206

90.3

118

49.2

3/4

M20

UCX20

FCSX20

18.4
