SBN3610V-7滚珠丝杠、SBN3612V-7滚珠丝杠、SBN3616V-5滚珠丝杠、SBN3620V-3滚珠丝杠、SBN4010V-5滚珠丝杠、SBN4012V-5滚珠丝杠、SBN4016V-5滚珠丝杠、SBN4020V-5滚珠丝杠、SBN4510V-5滚珠丝杠、SBN4512V-5滚珠丝杠、SBN4516V-5滚珠丝杠、SBN4520V-5滚珠丝杠、SBN5010V-5滚珠丝杠、SBN5012V-5滚珠丝杠、SBN5016V-5滚珠丝杠、SBN5020V-5滚珠丝杠

发布时间：2025-12-13

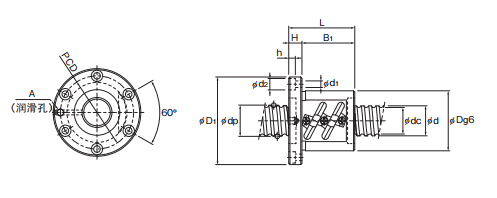

公称型号 丝杠轴 导程 钢球 外径 法兰直径 总长度 基本额定负荷
外径 中心直径 D
d Ph dp g6 D1 L1 动额定 静额定
Ca C0a
mm mm mm mm mm mm kN kN
SBN1604V-5 16 4 16.5 36 59 53 5.3 8
SBN1605V-5 16 5 16.75 40 60 56 9.2 12.9
SBN2004V-5 20 4 20.5 40 63 49 5.9 10.1
SBN2005V-5 20 5 20.75 44 67 56 10.3 16.2
SBN2010V-5 20 10 20.75 46 74 90 10.2 16.4
SBN2504V-5 25 4 25.5 46 69 48 6.4 12.7
SBN2505V-5 25 5 25.75 50 73 55 11.3 20.3
SBN2506V-5 25 6 26 53 76 62 15.4 25.4
SBN2805V-5 28 5 28.75 55 85 59 11.8 22.8
SBN3205V-5 32 5 32.75 58 85 56 12.6 26.1
SBN3206V-5 32 6 33 62 89 63 17.2 32.7
SBN2508V-7 25 8 26.25 58 85 98 26.2 43
SBN2510V-5 25 10 26.25 58 85 100 19.6 30.9
SBN2810V-3 28 10 29.75 65 106 88 19.5 27.8
SBN3210V-7 32 10 33.75 74 108 120 43 73.1
SBN3212V-5 32 12 34 76 121 117 37.4 58.7
SBN3216V-5 32 16 33.75 74 108 139 31.9 52.2
SBN3610V-7 36 10 37.75 75 120 123 45.6 82.3
SBN3612V-7 36 12 38 78 123 140 53.2 92.6
SBN3616V-5 36 16 38 78 123 140 39.7 66.4
SBN3620V-3 36 20 37.75 75 114 122 21.6 32.9
SBN4010V-5 40 10 41.75 82 124 103 35.8 65.2
SBN4012V-5 40 12 42 84 126 119 42 73.6
SBN4016V-5 40 16 42 84 126 144 41.9 73.8
SBN4020V-5 40 20 41.75 82 126 162 35.4 65.2
SBN4510V-5 45 10 46.75 88 132 111 37.9 73.8
SBN4512V-5 45 12 47 90 130 119 44.4 82.9
SBN4516V-5 45 16 47 90 130 140 44.3 83.1
SBN4520V-5 45 20 47 90 130 162 43.9 82.5
SBN5010V-5 50 10 51.75 93 135 103 39.4 81
SBN5012V-5 50 12 52.25 100 146 123 53.6 101.9
SBN5016V-5 50 16 52.7 105 152 164 89 167.7
SBN5020V-5 50 20 52.7 105 152 201 88.7 167.7
