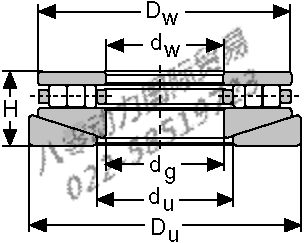

Dimensions (inch) | du | 13.7500 | |
Du | 20.8750 | ||
dw | 10.0000 | ||
dg | 10.2500 | ||
Dw | 19.9060 | ||
H | 5.0000 | ||
Approx. Wgt. lbs | 290.600 | ||
Interchange | American | ATP-156 | |
Andrews | - | ||
INA | - | ||
Rollway | AT-756 | ||
Torrington | 100 TPS 145 | ||
* These bearings are supplied as a complete unit. 1) This series is equipped with machined bronze cages. 2) O.D. dimension of shaft washer and bore dimension of housing washer may vary between manufacturers. 3) Smaller and larger sizes are available on special order. |
