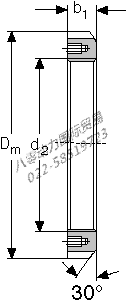

Dimensions (metric) | d | 9 | |
a | 4 | ||
b | 20 | ||
d2 x Pitch | Tr 260x4 | ||
Dm | 310 | ||
b1 | 34 | ||
c | 12 | ||
e | 17.5 | ||
Approx. Wgt. lbs | 12.560 | ||
Appropriate Hexagonal Bolt | M 8x18 | ||
Interchange | FAG | HM-3052 + MS-3048 | |
SKF | HM-3052 + MS-3048 | ||
1) The HMS-3000 series are used with H-3044 x 200mm, H-3944 x 200mm and larger adapters 2) Prefix "Tr" in column d2 indicates trapezoidal threads having an angle of 30°. |
