搜轴承 -- SKF -- 推力球轴承 -- SKF FBSA 206/QFC轴承

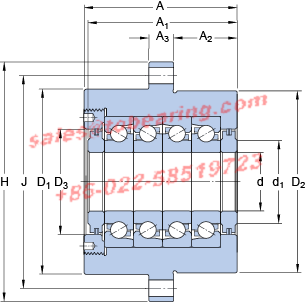

d - 30 mm

H - 120 mm

A - 84 mm

A₁ - 80.74 mm

A₂ - 32 mm

A₃ - 15 mm

d₁ - 41 mm

D₁ - 88 mm

D₂ - 80 mm

D₃ - 50 mm

Basic dynamic load rating - C - 46.5 kN

Basic static load rating - C₀ - 142 kN

Fatigue load limit - P_u - 5.3 kN

Limiting speed, Preload class A - 4000 r/min

Limiting speed for oil lubrication - 2000 mm/min

Preload class A - 4300 N

Preload class B - 8600 N

Frictional moment, Preload class A - 0.24 N·m

Frictional moment, Preload class B - 0.42 N·m

Static Axial rigidity, Preload class A - 1740 N/micron

Static Axial rigidity, Preload class B - 2220 N/micron

Weight - 3.5 kg

• SKF FBSA206/QFC推力球轴承图纸和参数

• 发布时间：2021-06-19
• 产品型号: FBSA206/QFC
• 新型号:FBSA 206/QFC
• 内径：30mm 外径：120mm 厚度：84mm
• 主要类别：推力球轴承
• 应用行业:焊接设备,环卫园林,纺织机械,牙钻机等,包装耗材工具,其他测量,广播系统,化学仪器,内螺纹类,插齿机类,工业护肤
• 近似型号:CX 54206 RHP 51206 KOYO 51206 FAG 51206 RIV 52206 CX 53206U+U206 INA ZKLF2068-2Z SKF 52206 FAG 53206 OKB 38206
• 天津八零动力国际贸易有限公司专业经销 FBSA 206/QFC产品，常年备货SKF FBSA 206/QFC 推力球轴承. 我们可以可以快速将您所需要的FBSA 206/QFC产品运送到全球任意地方购买 SKF FBSA 206/QFC 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 推力球轴承订购电话022-58519723/22/21
