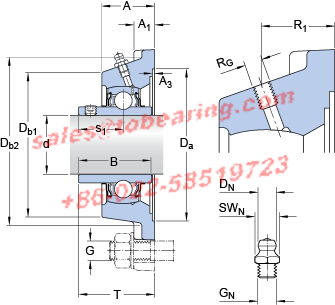

搜轴承 -- SKF轴承型号查询 -- 轴承单元 -- SKF FYJ 3/4 TF轴承

d - 19.05 mm

A - 25.5 mm

A₁ - 11 mm

A₃ - H14 - 3.2 mm

B - 31 mm

D_a - H11 - 68.3 mm

D_b1 - 58 mm

D_b2 - 64 mm

J - 64 mm

L - 86 mm

H - 12 mm

s₁ - 18.3 mm

T - 33.3 mm

J₆ - 74 mm

J₇ - 16 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 17 mm

Basic dynamic load rating - C - 12.7 kN

Basic static load rating - C₀ - 6.6 kN

Fatigue load limit - P_u - 0.28 kN

Limiting speed - 8500 r/min

Mass bearing unit - 0.54 kg

Thread - G₂ - 1/4-28 UNF

Hexagonal key size for grub screw - H - 3.175 mm

Recommended tightening torque for grub screw - 4 N·m

• SKF FYJ3/4TF轴承单元图纸和参数

• 发布时间：2026-11-13
• 产品型号: FYJ3/4TF
• 新型号:FYJ 3/4 TF
• 内径：19,05mm 外径：25,5mm 厚度：11mm
• 主要类别：轴承单元
• 应用行业:工业软管接头,其他测量,直线传动,常备实验设备,环卫设施,食品添加,造粒机类,装修机械,汽车及配件,仪器仪表,涂料油漆
• 近似型号:KOYO UCT316 INA RASE25-N FYH UCHA204-12 FYH UCFL202-10E KOYO NAPK211-34 KOYO UCP309-28 NKE FLCTEY12 SNR UCFA209 AST UCF 217-52E NACHI UCFC209
• 天津八零动力国际贸易有限公司专业经销 FYJ 3/4 TF产品，常年备货SKF FYJ 3/4 TF 轴承单元. 我们可以可以快速将您所需要的FYJ 3/4 TF产品运送到全球任意地方购买 SKF FYJ 3/4 TF 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 轴承单元订购电话022-58519723/22/21
