搜轴承 -- SKF轴承型号查询 -- 轴承单元 -- SKF FYM 1.3/4 TF轴承

d - 44.45 mm

A - 42 mm

A₁ - 15 mm

B - 51.6 mm

D_b1 - 107 mm

D_b2 - 118 mm

J - 111 mm

L - 143 mm

H - 16 mm

s₁ - 32.6 mm

T - 60.6 mm

J₆ - 129 mm

J₇ - 35.5 mm

N₄ - 4 mm

D_N - 6.579 mm

SW_N - 11.112 mm

G_N - 1/8-27 NPT

R_G - 1/8-27 NPT

R₁ - 28 mm

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C₀ - 23.2 kN

Fatigue load limit - P_u - 0.98 kN

Limiting speed - 4000 r/min

Mass bearing unit - 2.3 kg

Thread - G₂ - 3/8-24 UNF

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m

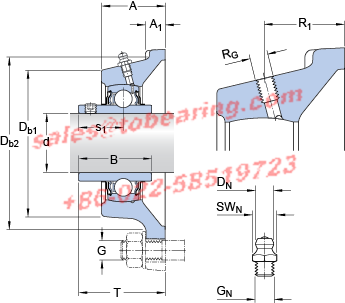

• SKF FYM1.3/4TF轴承单元图纸和参数

• 发布时间：2025-05-02
• 产品型号: FYM1.3/4TF
• 新型号:FYM 1.3/4 TF
• 内径：44,45mm 外径：42mm 厚度：15mm
• 主要类别：轴承单元
• 应用行业:诊察治疗,真空吸盘,计量泵,办公设备,有色金属合金,噪声检查,内螺纹类,绣花布类,显示器件,静电控制,聚合物类
• 近似型号:SNR UCF313 SKF FYT 5/8 FM ISO UCFC211 INA PMEY20-N INA RASEA50-N FYH UCTH210-30-300 FYH UCIP208-24 FYH SBPP205 KOYO UCTH206-19-150 FYH USP005S6
• 天津八零动力国际贸易有限公司专业经销 FYM 1.3/4 TF产品，常年备货SKF FYM 1.3/4 TF 轴承单元. 我们可以可以快速将您所需要的FYM 1.3/4 TF产品运送到全球任意地方购买 SKF FYM 1.3/4 TF 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 轴承单元订购电话022-58519723/22/21
