搜轴承 -- SKF轴承型号查询 -- 轴承单元 -- SKF FYTB 1.1/2 WDW轴承

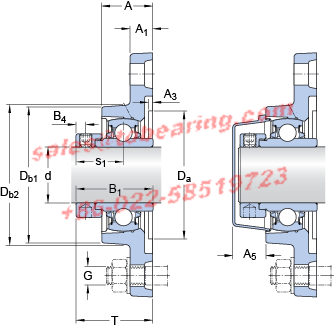

d - 38.1 mm

A - 38.5 mm

A₁ - 14 mm

A₃ - H14 - 3.2 mm

A₅ - 23.5 mm

B₁ - 56.3 mm

B₄ - 6.75 mm

D_a - H11 - 88.9 mm

D_b1 - 98 mm

D_b2 - 102 mm

J - 143.5 mm

H - 171.5 mm

L - 102 mm

H - 14 mm

s₁ - 34.9 mm

T - 58.9 mm

J₆ - 115.5 mm

J₇ - 16 mm

N₄ - 2 mm

R_G - 1/4-28 UNF

R₁ - 24.5 mm

R_α - 45 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 950 r/min

Mass bearing unit - 1.75 kg

Thread - G₂ - 3/8-24 UNF

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m

• SKF FYTB1.1/2WDW轴承单元图纸和参数

• 发布时间：2026-01-15
• 产品型号: FYTB1.1/2WDW
• 新型号:FYTB 1.1/2 WDW
• 内径：38,1mm 外径：38,5mm 厚度：14mm
• 主要类别：轴承单元
• 应用行业:挤齿机等,加温风机,面积测量,测试条类,纺织机械,吊夹,起重提升,丝锥磨床,冶金模具,食品加工机械设备,镗头镗杆
• 近似型号:INA RTUE30 KOYO UCPA206-20 SNR UKFE209H KOYO UCTL208-100 NACHI UP 08 KOYO UKFS306 FYH UCC205-14 NACHI UCPX18 ISO UCFC216 CX UCT210
• 天津八零动力国际贸易有限公司专业经销 FYTB 1.1/2 WDW产品，常年备货SKF FYTB 1.1/2 WDW 轴承单元. 我们可以可以快速将您所需要的FYTB 1.1/2 WDW产品运送到全球任意地方购买 SKF FYTB 1.1/2 WDW 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 轴承单元订购电话022-58519723/22/21
