搜轴承 -- SKF -- 轴承单元 -- SKF SYNT 45 L轴承

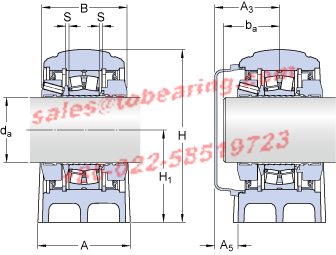

d_a - 45 mm

A - 60 mm

B - 65 mm

H - 118 mm

H₁ - 60 mm

H₂ - 25 mm

J - 170 mm

L - 205 mm

H - 20 mm

N₁ - 15 mm

S - 2.5 mm

J₆ - 185 mm

J₇ - 21 mm

N₄ - max. - 6 mm

A₃ - 52 mm

A₅ - 23 mm

b_a - min. - 34 mm

b_a - max. - 43 mm

Basic dynamic load rating - C - 102 kN

Basic static load rating - C₀ - 98 kN

Fatigue load limit - P_u - 10.8 kN

Limiting speed - 3500 r/min

Calculation factor - e - 0.26

Calculation factor - Y₁ - 2.6

Calculation factor - Y₂ - 3.9

Diameter - d_m - 65 mm

Basic Designation bearing - 22209 E

P_a - 15 kN

P_0° - 170 kN

P_55° - 280 kN

P_90° - 170 kN

P_120° - 110 kN

P_150° - 100 kN

P_180° - 115 kN

Mass bearing unit - 4 kg

Diameter - G - 12 mm

• SKF SYNT45L轴承单元图纸和参数

• 发布时间：2021-06-10
• 产品型号: SYNT45L
• 新型号:SYNT 45 L
• 内径：45mm 外径：60mm 厚度：65mm
• 主要类别：轴承单元
• 应用行业:机床车床,电子元器件,工业护肤,起重滑车,产品配件,其他加工,包装材料,服装辅料,原料辅料,插座行业,电磁阀
• 近似型号:INA RCJTY45-JIS INA RCJT45 INA LASE45 NKE RTUEY45 INA PSHE45 INA PCJY45 INA TME45 INA THE45 INA PCFT45 SKF SY 45 TF/VA201
• 天津八零动力国际贸易有限公司专业经销 SYNT 45 L产品，常年备货SKF SYNT 45 L 轴承单元. 我们可以可以快速将您所需要的SYNT 45 L产品运送到全球任意地方购买 SKF SYNT 45 L 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 轴承单元订购电话022-58519723/22/21
