SFI01604-4滚珠丝杠、SFI01605-4滚珠丝杠、SFI01610-3滚珠丝杠、SFI02004-4滚珠丝杠、SFI02005-4滚珠丝杠、SFI0205T-4滚珠丝杠、SFI02504-4滚珠丝杠、SFI02505-4滚珠丝杠、SFI02510-4滚珠丝杠、SFI03204-4滚珠丝杠、SFI03205-4滚珠丝杠、SFI03210-4滚珠丝杠、SFI04005-4滚珠丝杠、SFI04010-4滚珠丝杠、SFI05010-4滚珠丝杠、SFI06310-4滚珠丝杠、SFI08010-4滚珠丝杠

发布时间：2026-06-25

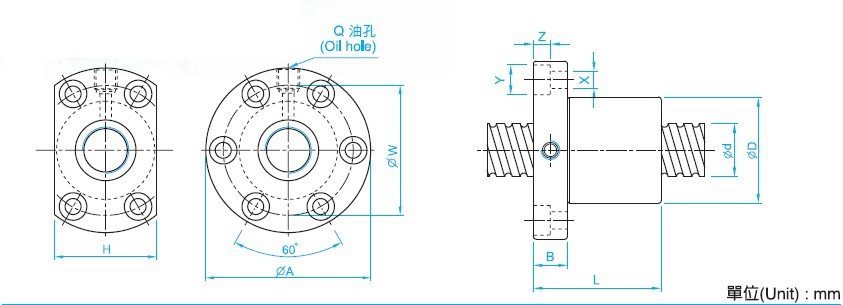

型 号 滾珠螺杆 , 螺帽之基准数据  l:导程 Da:珠径 N:珠圈数 K:刚性(kgf/μm) Ca:动额定负荷(kgf) Coa:静额定负荷(kgf)
d l Da D A B L W H X Y Z Q n Ca Coa K
SFI01604-4 16 4 2.381 30 49 10 45 39 34 4.5 8 4.5 M6 4 640 1340 16
SFI01605-4 16 5 3.175 30 49 10 50 39 34 4.5 8 4.5 M6 4 780 1790 20
SFI01610-3 16 10 3.175 34 58 10 57 45 34 5.5 9.5 5.5 M6 3 833 1249 15
SFI02004-4 20 4 2.381 34 57 11 46 45 40 5.5 9.5 5.5 M6 4 670 1480 25
SFI02005-4 20 5 3.175 34 57 11 51 45 40 5.5 9.5 5.5 M6 4 1130 2380 25
SFI0205T-4 20 5.08 3.175 34 57 11 51 45 40 5.5 9.5 5 M6 4 1130 2380 25
SFI02504-4 25 4 2.381 40 63 11 46 51 46 5.5 9.5 5.5 M6 4 760 1950 31
SFI02505-4 25 5 3.175 40 63 11 51 51 46 5.5 9.5 5 M8 4 1280 3110 35
SFI02510-4 25 10 4.762 46 72 12 85 58 52 6.5 11 6.5 M6 4 1944 3877 33
SFI03204-4 32 4 2.381 46 72 12 47 58 52 6.5 11 6.5 M6 4 860 3050 40
SFI03205-4 32 5 3.175 46 72 12 52 58 52 6.5 11 6 M8 4 1450 4150 40
SFI03210-4 32 10 6.35 54 88 15 90 70 62 9 14 8.5 M8 4 3390 7170 40
SFI04005-4 40 5 3.175 56 90 15 55 72 64 9 14 8.5 M8 4 1610 5330 49
SFI04010-4 40 10 6.35 62 104 18 93 82 70 11 17.5 11 M8 4 3910 9520 50
SFI05010-4 50 10 6.35 72 114 18 93 92 82 11 17.5 11 M8 4 4450 12500 65
SFI06310-4 63 10 6.35 85 131 22 98 107 95 14 20 13 M8 4 5070 16600 80
SFI08010-4 80 10 6.35 105 150 22 98 127 115 14 20 13 M8 4 5620 21300 90
