AHU28117A-03 Agri Disc Hub、AHU30140A-01 Agri Disc Hub、AHU34120B-01 Agri Disc Hub、AHU34140B-01 Agri Disc Hub、AHU44140B-01 Agri Disc Hub

发布时间：2026-08-13

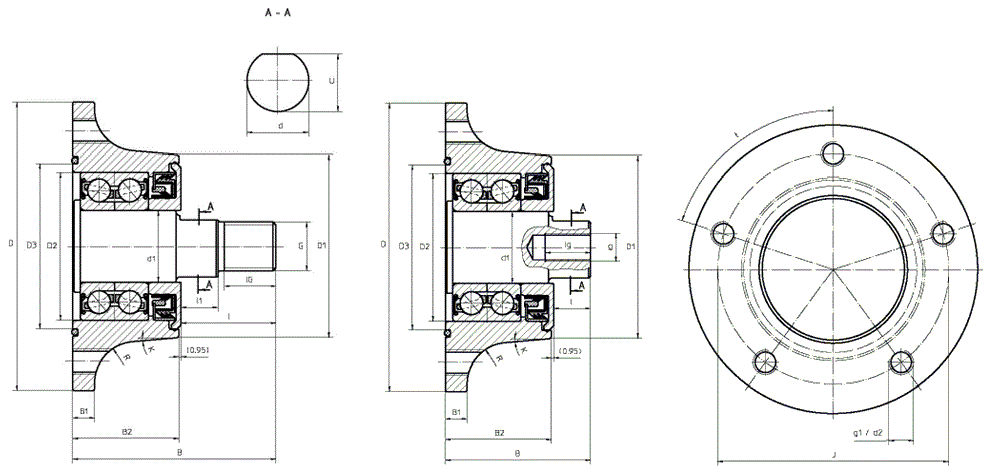

NSK Ref No. d (mm) D (mm) G / g lG / lg (mm) d1 (mm) J (mm) g1 d2 D1 (mm) K R (mm) D2 (mm) D3 (mm) l (mm) l1 (mm) U (mm) B (mm) B1 (mm) B2 (mm) t Disc Diameter Design

AHU20100A-01 20 100 M16 x 2 22.5 20 80 M10 x 1 - 60 - 3.5 47 54 35 10,5 18.5 73 7 38 5 x 72° up to 500mm A

AHU20100B-01 20 100 M14 x 1,5 20 20 80 M10 x 1 - 60 - 3.5 47 54 9 - 18.5 47 7 38 5 x 72° up to 500mm B

AHU20120A-01 20 120 M16 x 2 22.5 20 100 M10 x 1,5 - 60 3° 7.5 47 54 35 10,5 18.5 73 8 38 6 x 60° up to 500mm A

AHU20120B-01 20 120 M14 x 1,5 20 20 100 M10 x 1,5 - 60 3° 7.5 47 54 9 - 18.5 47 8 38 6 x 60° up to 500mm B

AHU28117A-01 28 117 M22 x 1,5 25 37 98 M12 x 1,25 - 89 5° 20 72 - 42 13 25.5 102 10.5 60 4 x 90° up to 700mm A

AHU28117A-02 28 117 M22 x 1,5 25 37 98 M12 x 1,25 - 89 5° 20 72 - 42 13 25.5 102 10.5 60 5 x 72° up to 700mm A

AHU28117A-03 28 117 M22 x 1,5 25 37 98 M12 x 1,25 - 89 5° 20 72 - 42 13 25.5 102 10.5 60 6 x 60° up to 700mm A

AHU30140A-01 30 140 M24 x 2 25 35 112 M12 x 1,5 - 89 5° 20 72 77,3 46 18 28 98.45 10.5 52.45 5 x 72° up to 700mm A

AHU34120B-01 34 120 M20 x 1,5 26 35 100 M10 x 1,5 - 89 2° 20 72 77,3 14 - 31 66.45 13.3 52.45 6 x 60° up to 700mm B

AHU34140B-01 34 140 M20 x 2,5 26 35 120 M10 x 1 - 89 5° 20 72 77,3 19 - 31 71.45 10.5 52.45 4 x 90° up to 700mm B

AHU44140B-01 44 140 M24 x 2 26 45 122 M12 x 1,75 - 100 2° 20 83 91 14 - 40 79.75 13.3 65.75 6 x 60° up to 800mm B

上一篇：AHU20100A-01 Agri Disc Hub、AHU20100B-01 Agri Disc Hub、AHU20120A-01 Agri Disc Hub、AHU20120B-01 Agri Disc Hub、AHU28117A-01 Agri Disc Hub、AHU28117A-02 Agri Disc Hub —— 下一篇：AHU20100A-01 轮毂轴承、AHU20100B-01 轮毂轴承、AHU20120A-01 轮毂轴承、AHU20120B-01 轮毂轴承、AHU28117A-01 轮毂轴承、AHU28117A-02 轮毂轴承、AHU28117A-03 轮毂轴承、AHU30140A-01 轮毂轴承、AHU34120B-01 轮毂轴承、AHU34140B-01 轮毂轴承、AHU44140B-01 轮毂轴承

返回搜轴承首页

NSK Ref No.	d (mm)	D (mm)	G / g	lG / lg (mm)	d1 (mm)	J (mm)	g1	d2	D1 (mm)	K	R (mm)	D2 (mm)	D3 (mm)	l (mm)	l1 (mm)	U (mm)	B (mm)	B1 (mm)	B2 (mm)	t	Disc Diameter	Design
AHU20100A-01	20	100	M16 x 2	22.5	20	80	M10 x 1	-	60	-	3.5	47	54	35	10,5	18.5	73	7	38	5 x 72°	up to 500mm	A
AHU20100B-01	20	100	M14 x 1,5	20	20	80	M10 x 1	-	60	-	3.5	47	54	9	-	18.5	47	7	38	5 x 72°	up to 500mm	B
AHU20120A-01	20	120	M16 x 2	22.5	20	100	M10 x 1,5	-	60	3°	7.5	47	54	35	10,5	18.5	73	8	38	6 x 60°	up to 500mm	A
AHU20120B-01	20	120	M14 x 1,5	20	20	100	M10 x 1,5	-	60	3°	7.5	47	54	9	-	18.5	47	8	38	6 x 60°	up to 500mm	B
AHU28117A-01	28	117	M22 x 1,5	25	37	98	M12 x 1,25	-	89	5°	20	72	-	42	13	25.5	102	10.5	60	4 x 90°	up to 700mm	A
AHU28117A-02	28	117	M22 x 1,5	25	37	98	M12 x 1,25	-	89	5°	20	72	-	42	13	25.5	102	10.5	60	5 x 72°	up to 700mm	A
AHU28117A-03	28	117	M22 x 1,5	25	37	98	M12 x 1,25	-	89	5°	20	72	-	42	13	25.5	102	10.5	60	6 x 60°	up to 700mm	A
AHU30140A-01	30	140	M24 x 2	25	35	112	M12 x 1,5	-	89	5°	20	72	77,3	46	18	28	98.45	10.5	52.45	5 x 72°	up to 700mm	A
AHU34120B-01	34	120	M20 x 1,5	26	35	100	M10 x 1,5	-	89	2°	20	72	77,3	14	-	31	66.45	13.3	52.45	6 x 60°	up to 700mm	B
AHU34140B-01	34	140	M20 x 2,5	26	35	120	M10 x 1	-	89	5°	20	72	77,3	19	-	31	71.45	10.5	52.45	4 x 90°	up to 700mm	B
AHU44140B-01	44	140	M24 x 2	26	45	122	M12 x 1,75	-	100	2°	20	83	91	14	-	40	79.75	13.3	65.75	6 x 60°	up to 800mm	B
