GJH15滚动花键、GJH20滚动花键、GJH25滚动花键、GJH30滚动花键、GJH40滚动花键、GJH50滚动花键、GJH15滚珠花键、GJH20滚珠花键、GJH25滚珠花键、GJH30滚珠花键、GJH40滚珠花键、GJH50滚珠花键

发布时间：2025-05-04

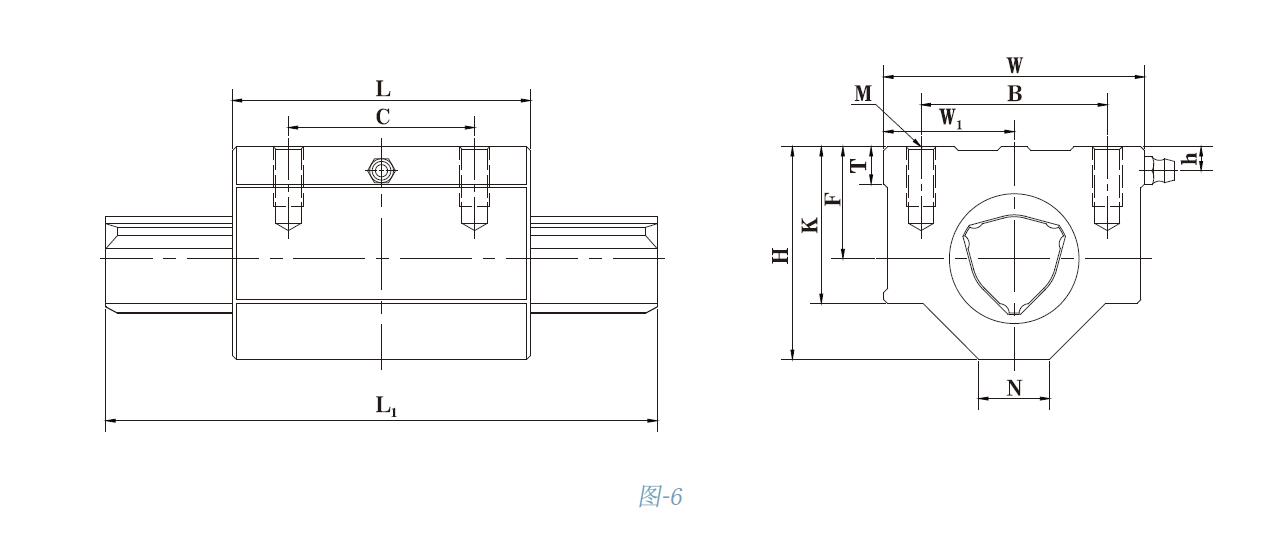

规格型号 H W L 轴大长度 L1 F W1 B C M K N T h 油杯动扭矩CT Nm 静扭矩C0T Nm 额定动载荷C(KN) 额定静载荷C0(KN)

GJH15 29 34 40 300 15 17 26 26 M4x10 23 9 6 5 Φ4压注油杯 27 45 3.7 7.1

GJH20 38 48 60 500 20 24 35 35 M6x12 29 12 7 6 直通式M6 76.5 127.8 7.9 17

GJH25 47 60 70 700 25 30 40 40 M8x14 35 16 10 7 直通式M6 152 228.6 12.6 24.3

GJH30 57 70 80 1000 30 35 50 50 M8x16 42 19 10 7 直通式M6 265.2 394.2 19.1 35.1

GJH40 70 86 102 1200 38 43 60 60 M10x20 58 26 15 10 直通式M6 609 852 31.5 56.8

GJH50 86 100 112 1400 48 50 75 75 M12x20 74 32 15 10 直通式M6 1133 1500 46.8 79.9

上一篇：GJZA15滚动花键、GJZA25滚动花键、GJZA32滚动花键、GJZA40滚动花键、GJZA50滚动花键、GJZA60滚动花键、GJZA70滚动花键、GJZA85滚动花键、GJZA100滚动花键、GJZA120滚动花键、GJZA150滚动花键、GJZA15滚珠花键、GJZA25滚珠花键、GJZA32滚珠花键、GJZA40滚珠花键、GJZA50滚珠花键、GJZA60滚珠花键、GJZA70滚珠花键、GJZA85滚珠花键、GJZA100滚珠花键、GJZA120滚珠花键、GJZA150滚珠花键 —— 下一篇：GJF15凸缘式滚珠花键副、GJF20凸缘式滚珠花键副、GJF25凸缘式滚珠花键副、GJF30凸缘式滚珠花键副、GJF32凸缘式滚珠花键副、GJF40凸缘式滚珠花键副、GJF50凸缘式滚珠花键副、GJF60凸缘式滚珠花键副、GJF70凸缘式滚珠花键副、GJF85凸缘式滚珠花键副

返回搜轴承首页

规格型号	H	W	L	轴大长度 L1	F	W1	B	C	M	K	N	T	h	油杯	动扭矩CT Nm	静扭矩C0T Nm	额定动载荷C(KN)	额定静载荷C0(KN)
GJH15	29	34	40	300	15	17	26	26	M4x10	23	9	6	5	Φ4压注油杯	27	45	3.7	7.1
GJH20	38	48	60	500	20	24	35	35	M6x12	29	12	7	6	直通式M6	76.5	127.8	7.9	17
GJH25	47	60	70	700	25	30	40	40	M8x14	35	16	10	7	直通式M6	152	228.6	12.6	24.3
GJH30	57	70	80	1000	30	35	50	50	M8x16	42	19	10	7	直通式M6	265.2	394.2	19.1	35.1
GJH40	70	86	102	1200	38	43	60	60	M10x20	58	26	15	10	直通式M6	609	852	31.5	56.8
GJH50	86	100	112	1400	48	50	75	75	M12x20	74	32	15	10	直通式M6	1133	1500	46.8	79.9
