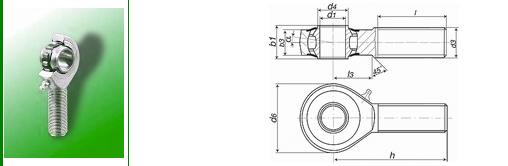

腰鼓型滚子外螺纹杆端关节轴承BRTO12、BRTO16、BRTO20、BRTO25、BRTO30

Type

Nr.

d₁

d₃

d₄

d₆

b₁

b₃

h

l

l₃

α

weight

n_max

C

C₀

mm

mm

mm

mm

mm

mm

mm

mm

mm

[°]

[kg]

[min^-1]

[N]

[N]

BRTO

12

12

M 12

14.5

32

16

12

54

33

19

7.5

0.088

1125

10250

6600

BRTO

16

16

M 16

19

42

21

15

66

40

22

7

0.185

975

13300

8900

BRTO

20

20

M 20 x 1,5

24.5

50

25

18

78

47

28

7

0.34

825

17000

11700

BRTO

25

25

M 24 x 2

29.5

64

31

22

94

57

30

5

0.596

600

24900

18500

BRTO

30

30

M 30 x 2

34.5

70

37

25

110

66

35

7.5

0.912

450

32500

24850
