外圈单开缝向心关节轴承GEZ19ET-2RS、GEZ22ET-2RS、GEZ25ET-2RS、GEZ31ET-2RS、GEZ34ET-2RS、GEZ38ET-2RS、GEZ44ET-2RS、GEZ50ET-2RS、GEZ63ET-2RS、GEZ69ET-2RS、GEZ76ET-2RS、GEZ82ET-2RS、GEZ88ET-2RS
发布时间：2019-10-17
| ◆ 外圈有一轴向缝。 |
| Outer ring with single split in axial drection. |
| ◆ 两面带密封圈，外圈球面粘贴PTFE织物。 |
| Outer ring with two seals .to line PTFE fabric on the surface. |
| ◆ 内圈球面镀铬 |
| Spherical surface of inner ring with chromium plating. |
| ◆ 外圈和内圈为GCr15轴承钢 |
| Outer and inner--52100Steel. | |
 |
 |
| Inch size bearings |
( in ) |

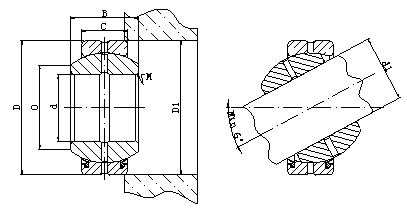

型 号
Part Number |
d |
d1
Recommended
Shaft Dia |
D |
D1
Recommended
Housing Dia |
C |
B |
O |
M |
Load Ratings
Static IbsThrust lbs |
Weight
Ibs |
| GEZ19ET-2RS |
0.7500 |
0.7500 |
0.7495 |
1.2500 |
1.2502 |
1.2494 |
0.562 |
0.656 |
0.844 |
0.400 |
20927 |
7089 |
0.121 |
| GEZ22ET-2RS |
0.8750 |
0.8750 |
0.8745 |
1.4375 |
1.4377 |
1.4369 |
0.656 |
0.765 |
0.974 |
0.400 |
28573 |
9565 |
0.187 |
| GEZ25ET-2RS |
1.0000 |
1.0000 |
0.9995 |
1.6250 |
1.6252 |
1.6244 |
0.750 |
0.875 |
1.103 |
0.400 |
37359 |
12605 |
0.265 |
| GEZ31ET-2RS |
1.2500 |
1.2500 |
1.2495 |
2.0000 |
2.0002 |
1.9994 |
0.937 |
1.093 |
1.382 |
0.400 |
58507 |
19468 |
0.507 |
| GEZ34ET-2RS |
1.3750 |
1.3750 |
1.3745 |
2.1875 |
2.1877 |
2.1869 |
1.031 |
1.187 |
1.516 |
0.400 |
69756 |
23404 |
0.772 |
| GEZ38ET-2RS |
1.5000 |
1.5000 |
1.4995 |
2.4375 |
2.4377 |
2.4369 |
1.125 |
1.312 |
1.703 |
0.400 |
84379 |
28129 |
0.926 |
| GEZ44ET-2RS |
1.7500 |
1.7500 |
1.7494 |
2.8125 |
2.8128 |
2.1118 |
1.312 |
1.531 |
1.984 |
0.400 |
114752 |
38255 |
1.41 |
| GEZ50ET-2RS |
2.0000 |
2.0000 |
1.9993 |
3.1875 |
3.1878 |
3.1868 |
1.500 |
1.750 |
2.266 |
0.480 |
150754 |
50408 |
2.05 |
| GEZ57ET-2RS |
2.2500 |
2.2500 |
2.2493 |
3.5625 |
3.5629 |
3.5617 |
1.687 |
1.969 |
2.554 |
0.480 |
191251 |
63002 |
2.87 |
| GEZ63ET-2RS |
2.5000 |
2.5000 |
2.4993 |
3.9375 |
3.9379 |
3.9367 |
1.875 |
2.187 |
2.833 |
0.480 |
234007 |
77629 |
4.08 |
| GEZ69ET-2RS |
2.7500 |
2.7500 |
2.7493 |
4.3750 |
4.3754 |
4.3742 |
2.062 |
2.406 |
3.110 |
0.480 |
285752 |
95628 |
5.29 |
| GEZ76ET-2RS |
3.0000 |
3.0000 |
2.9993 |
4.7500 |
4.7504 |
4.7491 |
2.250 |
2.625 |
3.406 |
0.480 |
337506 |
112505 |
6.84 |
| GEZ82ET-2RS |
3.2500 |
3.2500 |
3.2491 |
5.1250 |
5.1254 |
5.1241 |
2.437 |
2.844 |
3.703 |
0.480 |
396009 |
131626 |
8.38 |
| GEZ88ET-2RS |
3.5000 |
3.5000 |
3.4991 |
5.5000 |
5.5004 |
5.4991 |
2.625 |
3.062 |
4.000 |
0.480 |
459001 |
153003 |
10.58 |
| GEZ95ET-2RS |
3.7500 |
3.7500 |
3.7491 |
5.8750 |
5.8754 |
5.8741 |
2.812 |
3.281 |
4.266 |
0.480 |
531004 |
175507 |
12.79 |
| GEZ101ET-2RS |
4.0000 |
4.0000 |
3.9991 |
6.2500 |
6.2504 |
5.2491 |
3.000 |
3.500 |
4.559 |
0.480 |
596256 |
202508 |
15.44 |
| GEZ114ET-2RS |
4.5000 |
4.5000 |
4.4991 |
7.0000 |
7.0004 |
6.9991 |
3.375 |
3.937 |
5.110 |
0.600 |
765002 |
252006 |
21.61 |
| GEZ120ET-2RS |
4.7500 |
4.7500 |
4.7491 |
7.3750 |
7.3754 |
7.3741 |
3.562 |
4.156 |
5.386 |
0.600 |
843754 |
281254 |
25.36 |
| GEZ127ET-2RS |
5.0000 |
5.0000 |
4.9990 |
7.7500 |
7.7505 |
7.7490 |
3.750 |
4.375 |
5.703 |
0.600 |
933755 |
315009 |
29.76 |
| GEZ152ET-2RS |
6.0000 |
6.0000 |
5.9990 |
8.7500 |
8.7505 |
8.749 |
4.125 |
4.750 |
6.594 |
0.600 |
1170002 |
389257 |
38.59 | | |
