HJG-DA30C滑块、HJG-DA30CL滑块、HJG-DA35C滑块、HJG-DA35CL滑块、HJG-DA45C滑块、HJG-DA45CL滑块、HJG-DA45BC滑块、HJG-DA45BCL滑块

发布时间：2025-05-05

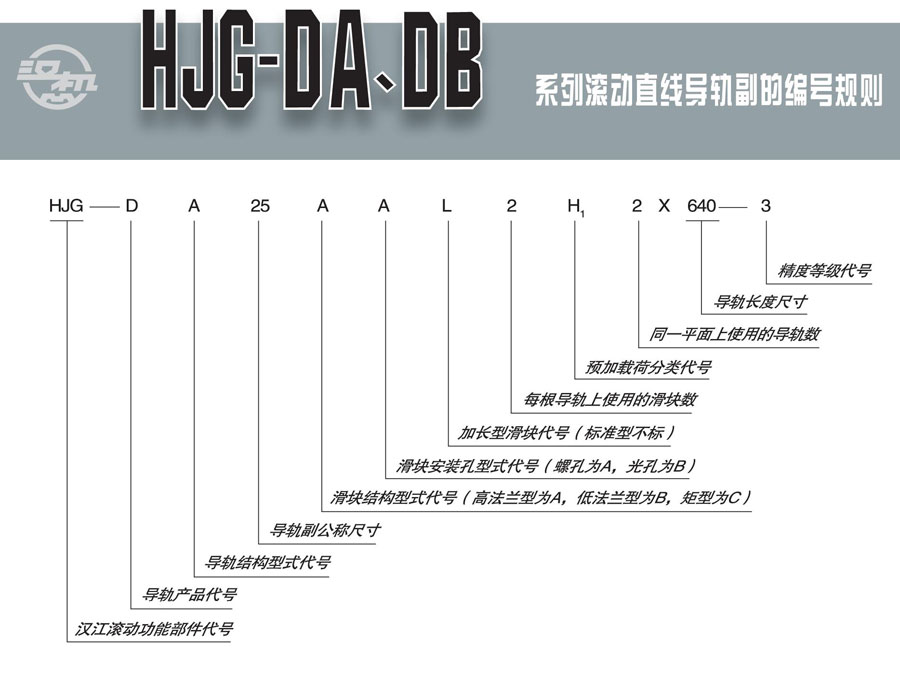

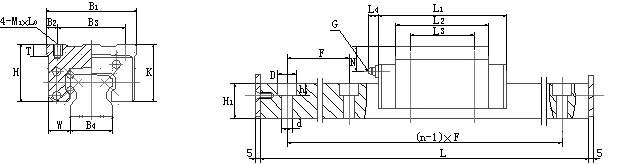

型号	导轨副尺寸		汉江滑块尺寸										滑块
	H	W	B1	B2	B3	K	T	M1×L0	L1	L2	L3	d×D×h	重量
													只
													kg
HJG-DA15C	28	9	34	4	26	23.4	6	M4×5.0	58	40.5	26	4.5×7.5×5.3	0.18
HJG-DA20C	30	12	44	6	32	24	8	M5×5	70	50	36	6×9.5×8.5	0.25
HJG-DA20CL									86	66	50		0.35
HJG-DA25C	40	12.5	48	6.5	35	33.1	8	M6×8	79.5	59	35	7×11×9	0.54
HJG-DA25CL									98.5	78	50		0.67
HJG-DA30C	45	16	60	10	40	38	8	M8×10	95.2	70	40	9×14×12	0.9
HJG-DA30CL									117.2	92	60		1.1
HJG-DA35C	55	18	70	10	50	47	10	M8×12	107.8	81	50	9×14×12	1.5
HJG-DA35CL									131.8	105	72		2
HJG-DA45C	70	20.5	86	13	60	60	15	M10×16	135	102	60	14×20×16	2.6
HJG-DA45CL									163	130	80		3.1
HJG-DA55C	80	23.5	100	12.5	75	67	18	M12×18	161	118	75	16×23×20	4.3
HJG-DA55CL									199	156	95		5.4
HJG-DA65C	90	31.5	126	25	76	76	23	M16×16	195	147	70	18×26×22	7.3
HJG-DA65CL									255	207	120		9.3
HJG-DA85C	110	39	163	31.5	100	94	30	M18×25	243.4	179	80	24×35×28	13
HJG-DA85CL									300.4	236	140		16
汉江导轨尺寸					油杯尺寸			额定	额定	额定力矩			导轨
								动载	静载
型 号	B4	H1	F	单根	L4	G	N	C	C0	MA	MB	MC	重量
				长度				(KN)	(KN)	(N.m)	(N.m)	(N.m)	米
				Lmax									kg
HJG-DA15C	16	15	60	500	2.5	Φ4	9	6.07	6.8	55.5	55.5	88.8	1.5
HJG-DA20C	20	18	60	1400	11	M6	5	11.6	14.5	92.4	92.4	154	2.3
HJG-DA20CL								13.6	20.3	121.8	121.8	203
HJG-DA25C	23	22	60	3000	11	M6	10.2	17.7	22.6	149.8	149.8	246	3.3
HJG-DA25CL								20.7	34.97	244.8	244.8	402
HJG-DA30C	28	26	80	3000	11	M6	10	27.6	34.4	311.3	311.3	546	4.6
HJG-DA30CL								33.4	45.8	560	560	745.2
HJG-DA35C	34	29	80	3000	11	M6	17	35.1	47.2	488	488	790	6.2
HJG-DA35CL								39.96	64.85	681	681	1102.45
HJG-DA45C	45	38	100	3000	11	M6	21	42.5	71	848	848	1448	11.1
HJG-DA45CL								64.4	102.1	1345.4	1345.4	2247.25
HJG-DA55C	53	44	120	3000	14	M8×1	22	79.4	101	1547	1547	2580	14.9
HJG-DA55CL								92.2	142.5	2264.3	2264.3	3776.25
HJG-DA65C	63	53	150	3000	14	M8×1	12	115	163	3237	3237	4860	21.7
HJG-DA65CL								148	224.5	4627.5	4627.5	6945.75
HJG-DA85C	85	65	180	3000	14	M8×1	14	172.2	257.4	6076.4	6076.4	12842	36.1
HJG-DA85CL								202.3	327.6	9946.3	9946.3	15410
